WPA-07 K Stove blower, boiler blower, blower, pressure fan, pressure blower wood gasifier

Application:

The fan is used to supply air into the furnaces of the heating boilers. It can also be used for general ventilation of rooms and scientific equipment. The working temperature of the fan is in the range of 0 to 40 °C.

Construction:

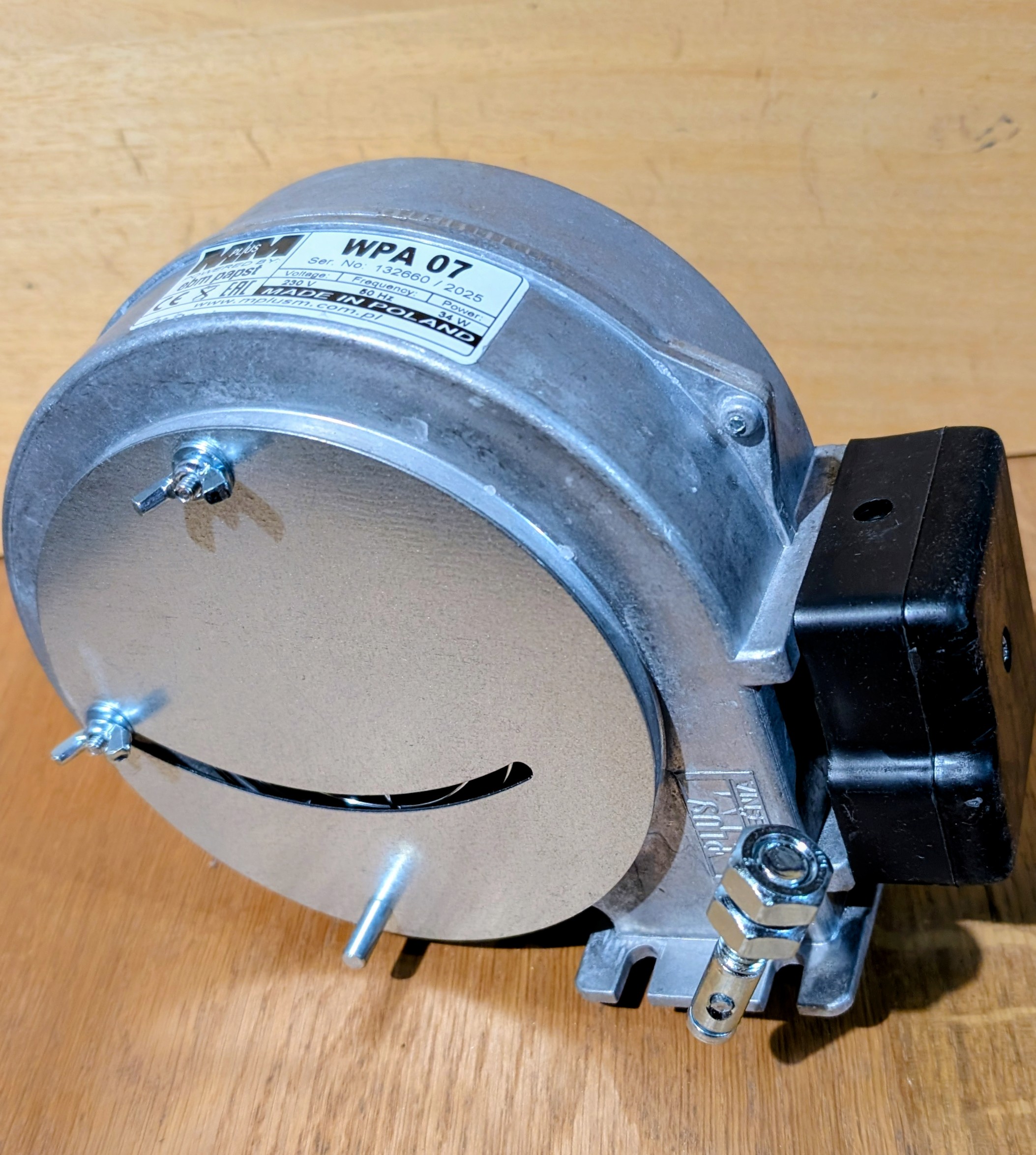

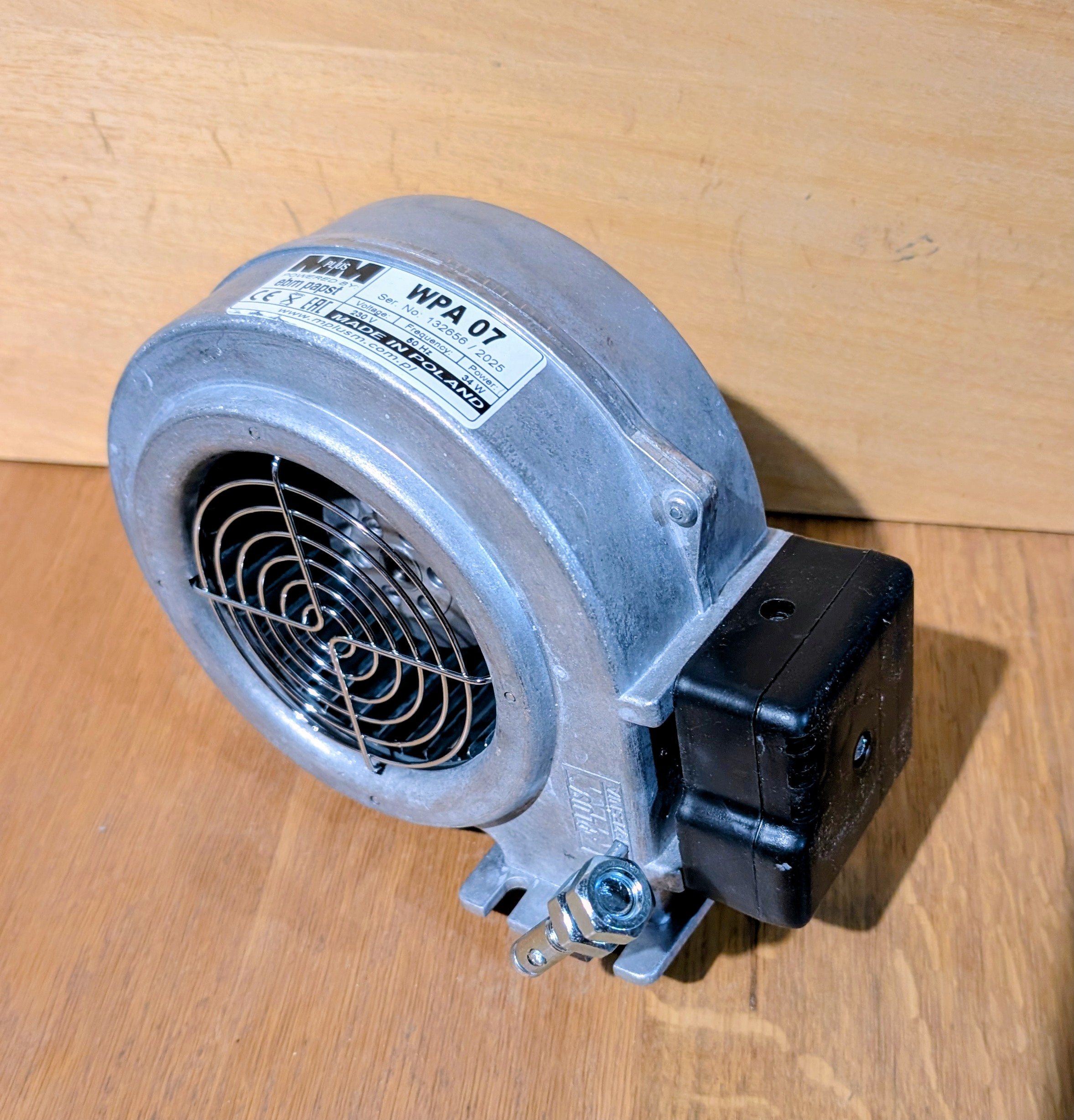

The fan consists of a two-part aluminum housing in which the motor with an external rotor is attached. The suction opening hole was secured with a grid. Includes throttle valve on the flange and holes that make it easier to attach the fan.

Engine type:

Mains voltage: 230V/50 Hz

Protection class: IP20

Noise level: <60 dB

Maximum compression: 280 Pa

Maximum capacity: 160 m³/h

Power consumption: 34 watts

Motor speed: 1650 rpm

Motor type: R2E 120-AR87-37 ebm-papst

Starting capacitor: 0.68 μF

Weight: approx. 3 kg

 Incl. 0.8m device plug with throttle valve
