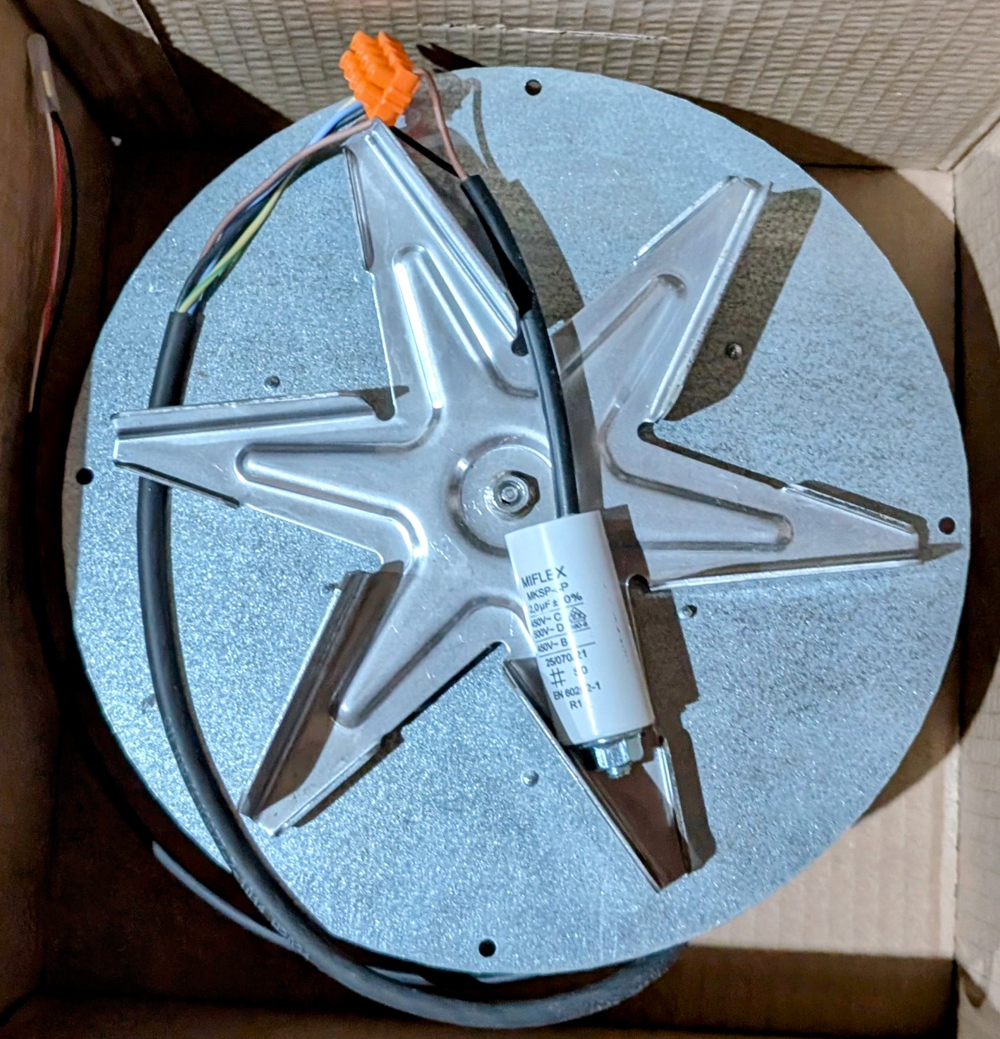

AC hot-air circulation blower R2E210 AA34-05

  • Model: R2E210 AA34-05
  • Shipping Weight: 4 lbs
  • 8 Units in Stock
  • Manufactured by: MplusM

253.00 €
incl. 19% VAT
plus shipping and handling

Add to Cart:



Technical description
Weight 3.5 kg
Fan size 210 mm
Rotor surface Partly cast in aluminum
Impeller material Sheet steel, stainless
Support plate material Sheet steel, hot-dip galvanized
Number of blades 6
Motor suspension Motor mounted on support plate for one-sided vibration damping
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP44 / installation- and position-dependent
Insulation class "F"
Moisture (F) / Environmental (H) protection class F0
Max. permitted ambient temp. for motor (transport/storage) + 80 °C
Min. permitted ambient temp. for motor (transport/storage) - 40 °C
Installation position Any
Condensation drainage holes None
Mode S1
Motor bearing Ball bearing
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) < 0,75 mA
Motor protection Thermal overload protector (TOP) internally connected
with cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1 / CE
Approval EAC









  • Manufacturer Info MplusM
  • Contact information in accordance with Art. 19 EU GPSR
  •
  • Post Address:
  • MplusM, Frąszczak M. Kruk E. Sp.J.
  • Obłaczkowo 148
  • 62-300 Września
  • Polen
  •
  • Electronical Address:
  • Website: https://mplusm.com.pl

 Ask a Question

This product was added to our catalog on Monday 21 December, 2015.
